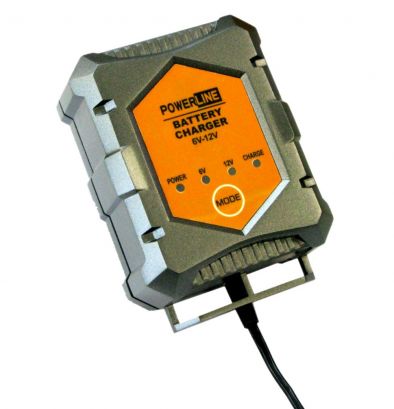

FEATURES
- Compact design
- With auto memory function after Power restart
- Full Power charging
- 6V / 12V 1A for motorcycle batteries
| Model | 6V/12V 1A |
| Input Voltage | 100-240VAC 50/60Hz |
| Input Cable | With Cable (Wall Plug Case) |
| Fast Charging Current | 6VDC/12VDC at 1A +/-10% |
| Detect Battery Performance | 6V & 12V Lead-Acid Batteries |
| Battery Capacity | 1.2AH – 20AH |
| Double LED (Green & Red) Indication | Fasting Charging OR Full Charging |
| Select Switching | 6V OR 12V Battery Charging |
| Material Of Housing | Polycarbonate |
| Operation Temperature | 0℃ - 30℃ |
| Approval | CE / GS |
| Proof Water Grade | IP 65 |
| Application | Used in Motorbike, Car or Vehicles |
Specification
| MODEL | PL-C001P | PL-C007P |
| Charging current (A) | 1Amp | 7Amp |
| Charging voltage (V) | 6V/12V | 12V |
| For battery: | ||
| Open WET | √ | √ |
| Maintenance free | √ | √ |
| AGM/VRLA | √ | √ |
| Calcium | √ | |
| To charge battery capacity | 1.2-24Ah | 20Ah - 200Ah |
| To maintain battery capacity | 1.2-24Ah | 20Ah - 300Ah |
| Microprocessor controlled | √ | √ |
| Charging steps: | ||
| Float charge | √ | √ |
| Overcharge protection | √ | √ |
| Allow for safe contiounus charge | √ | √ |
| Boost | √ | |
| Recovery function | √ | √ |
| IP rating | ||
| Charge Status indiations: | ||
| Battery defect | √ | √ |
| Wrong connection | √ | √ |
| Wrong polarity | √ | √ |
| Short circuit | √ | √ |
| Charging progress indication | √ | √ |
| Full charge indication | √ | √ |
| 230V power on | √ | √ |
| built-in protection | √ | √ |
| EMC free | √ | |
| Reversed polarity Protection | √ | √ |
| Short-circuit-protection | √ | √ |
| Spark free protection | √ | √ |
| Mechanical features | √ | |
| Length of Dc cables | ||
| Length of AC 230V cable | ||
| DC charging clips fully insulated | ||
| Material of housing | PC | |
| Fire retardant material | ||
| Dimensions | 225x108x55 mm | |
| weight |
