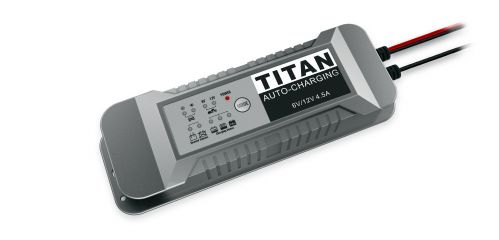

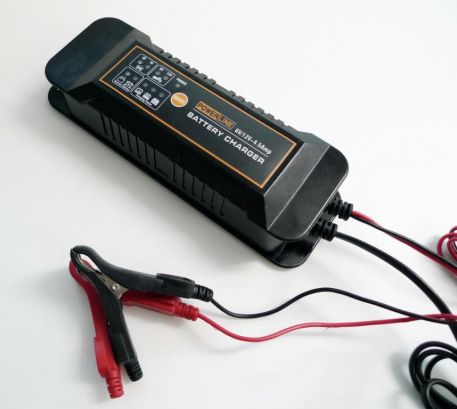

PL-C004B
12V 4.5ACOLOUR
Black
Titanium
FEATURES
- With auto memory function after Power restart
- Full Power charging
- 12V 1A & 4.5A for motorcycle & car batteries
- Selective mode for AGM and Winter condition
- Fit for Lead Acid / AGM and Gel Batteries
| Model | 12V 4.5A |
| Input Voltage | 100-240VAC/50Hz |
| Input Cable | With Cable (Desktop Case) |
| Charging Battery Type | 12V Lead-Acid: 1.2AH – 120AH; |
| Restore Dead Battery Function | 12V Battery |
| Abnormality Protection | Short Circuit; Battery Defective and Reverse Connection |
| Charging Mode | 6 Steps With Fully Automatic Switch Mode |
| Material Of Housing | UV Resistant Polycarbonate |
| Proof Water Grade | IP65 |
| Protection Class | Class II |
| Approval | CE / GS |
| Application | Used in Car, Motorbike, Vehicles |
Specification
| MODEL | PL-C004B |
| Charging current (A) | 4.5Amp |
| Charging voltage (V) | 6V / 12V |
| For battery: | |
| Open WET | √ |
| Maintenance free | √ |
| AGM/VRLA | √ |
| Calcium | |
| To charge battery capacity | 14Ah - 140Ah |
| To maintain battery capacity | 14Ah - 210Ah |
| Microprocessor controlled | √ |
| Charging steps: | |
| Float charge | √ |
| Overcharge protection | √ |
| Allow for safe contiounus charge | √ |
| Boost | |
| Recovery function | √ |
| IP rating | |
| Charge Status indiations: | |
| Battery defect | √ |
| Wrong connection | √ |
| Wrong polarity | √ |
| Short circuit | √ |
| Charging progress indication | √ |
| Full charge indication | √ |
| 230V power on | √ |
| built-in protection | √ |
| EMC free | √ |
| Reversed polarity Protection | √ |
| Short-circuit-protection | √ |
| Spark free protection | √ |
| Mechanical features | |
| Length of Dc cables | |
| Length of AC 230V cable | |
| DC charging clips fully insulated | |
| Material of housing | |
| Fire retardant material | |
| Dimensions | |
| weight |
